StroboStomp Mini
Your email is subscribed to StroboStomp Mini - Updates on StroboStomp Mini
Instruction Manual Pages
Overview

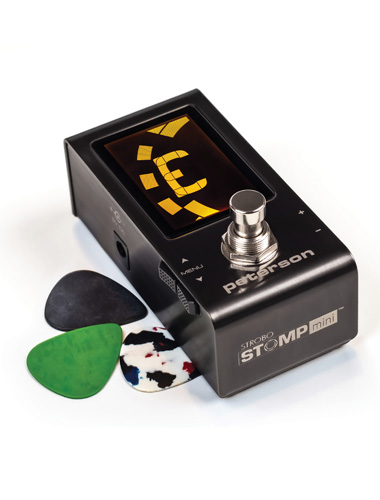

For over 75 years, Peterson has been trusted by some of the biggest names on stage and in the studio as the standard in tuning precision. The StroboStomp Mini™ delivers the unmatched 0.1 cent tuning accuracy of all authentic Peterson Strobe Tuners in a mini pedal tuner format. Featuring a high-definition LCD strobe display with variable LED color backlight, your instruments will never sound more in tune. A pop-less true bypass mode and a buffered output mode place you in command of your precious tone without compromise. With over 80 exclusive Sweetened Tunings® and Guided Tunings on-board, you'll be able to dial in your sound and tune like the pros!
We designed StroboStomp Mini around the most requested features from our customers: a mini form factor, and top mounted jacks. We felt there could be no concessions in StroboStomp Mini. Users will find everything they love about StroboStomp HD in StroboStomp Mini, pop-less true bypass, pure buffer, always-on Monitor Mode, transposition, adjustable concert A reference, as well as a few new features like Power Up Mute State not yet available on StroboStomp HD. As with all our tuners, StroboStomp Mini adheres to our 0.1 cents standard of tuning accuracy. StroboStomp Mini is everything you need in a pedal tuner; shrunk down to less than half the size of StroboStomp HD.
Features
- High-Definition LCD Display with LED Backlight
- Easily Visible in Direct Sunlight or Stage Lighting
- User-Configurable Display Backlight Color
- Over 80 Sweetened and Guided Tunings
- 390Hz - 490Hz Concert A Reference
- +5 to -6 Transposition
- Pop-less, 100% True Bypass Mode
- Pure Buffered Output Mode
- Tuning 'Always-On' Monitor Mode
- Real Strobe Tuner with 0.1 Cent Accuracy
- Mini Form Factor
- Top Mounted Jacks
- Firmware Updateable
- Peterson Connect™
- 9V DC / USB-C Bus Powered
Available Sweetened Tunings ( 80 )
Default
Guitar & Bass
Buzz Feiten
Bluegrass
World
Guided Standard Tunings ( String Numbers )
Guided Drop Tunings ( String Numbers )
Guided Open Tunings ( String Numbers )
Guided Minor/Crossnote Tunings ( String Numbers )
Compare to Sweetened Tunings offered in other products.
Specifications
Power Supply: 9VDC Negative Center Pin / USB-C Bus
DI: No
Peterson Connect Compatible: Yes
Note Range: C0 - A#8
Note Selection: Automatic
Firmware Updateable: Yes
Guided Tunings: Yes
Multi-Color Display: Yes
Buffered Mode: Yes
True Bypass: Yes
Form Factor: Pedal / Floor
Accuracy: 0.1 Cents
Display Type: LCD w/ LED Backlight
Display Resolution: 224 Strobe Segments
Construction: Stainless Steel
Product Dimensions LxWxH: 94mm x 46mm x 33.5mm ( without switch )
Product Weight: .0.56lb (8.9oz)
USB Port: Yes
USB Type: Type C
Rechargeable: No
Battery Type: None
Power: 9VDC 85mA (Nominal)
Power Out: None
Built-In Microphone: No
Built-In Speaker: No
Headphone Jack: No
Inputs: 1/4" Mono
Outputs: 1/4" Mono
Mute-able Output: Yes
Concert A Range: 390Hz to 490Hz
Transposition Range: -6 to +5
Frequency Response Range: 16.35Hz to 7302Hz
Warranty: 2 Years
Sweetened Tunings: Over 80
User Presets: Unlimited
Reviews | StroboStomp Mini
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Verified Purchase
Frequently Asked Questions
Does my StroboStomp Mini require calibration?
Unlike more modern Peterson strobes, legacy models such as the Peterson 400, 420, 450 and 700 do require occasional calibration.
If you require service, please open a support ticket and return the tuner for repair.
Was this helpful?
Help others find this information sooner.
I want to power my tuner via USB. What power supplies are available with USB power output?
- CIOKS DC7
- CIOKS 8
- Fender Engine Room LVL8
- Fender Engine Room LVL12
- Rockboard ISO Power Block V16
- Mission Engineering 529 USB Pedal Power Supply
- Mission Engineering 529i Recharge
- Gator GTR-PWR-12
- Joyo JP-05 Power Supply 5
- Onstage PS1000
- Lotkey Power Supply Portable 7
- Pedal Tank Pocket DC
Was this helpful?
Help others find this information sooner.
What power supplies can be used with my Peterson Pedal Tuner? ( StroboStomp 1 & 2, Stomp Classic & StroboStomp HD/LE/Mini )
Partial list of regulated power supplies:
- Voodoo Lab Pedal Power 2 (Eight isolated 9VDC 100mA regulated outputs)
- Dunlop DCB-10 DC Brick (10 outputs)
- Visual Sound 1-Spot (9V fully regulated output)
- Carl Martin Big John 9v Power Supply (Seven 9VDC outputs 600mA total)
- Sanyo Pedal Juice
- T-Rex Fuel Tank
- Godlyke PA9 Power All (9V 800mA regulated output)
- Boss PSA120 adapter (9V 200mA regulated)
As always with any pedal, be careful - check voltage ( 9V regulated ) & polarity (positive barrel-negative inner sleeve) first and don't overload the power supply's ampere rating by daisy chaining too many pedals from a single supply.
Was this helpful?
Help others find this information sooner.
How do I read a strobe display?
Adjust your instrument until the pattern is as close to still as possible. Strobe displays are 'real-time' and extremely precise. They require very fine tuning adjustments to stop the display because the frequency/pitch of any instrument is never totally stable.
You'll quickly learn to read the display, make the most precise adjustments and appreciate the high resolution that only a Peterson provides.
Was this helpful?
Help others find this information sooner.
Is the accuracy the same for all Peterson tuners?
Was this helpful?
Help others find this information sooner.
Not finding an answer? Open a support ticket for personalized support of your Peterson product.
View More
Documents
Not finding an answer? Open a support ticket for personalized support of your Peterson product.
Instruction Manual Pages
Firmware Revision History
StroboStomp Mini Version 1.0.07
Friday, August 18, 2023 8:03:00 PM EDT
- Fixes alternate strobe patterns in Peterson Connect
- Various Bug Fixes
StroboStomp Mini Version 1.0.06
Wednesday, July 26, 2023 4:45:00 PM EDT
- Preserves Output Mode, Mute Power-Up State and Play Preset after User Config Update
- Various Bug Fixes
StroboStomp Mini Version 1.0.05
Friday, March 24, 2023 3:31:00 PM EDT
StroboStomp Mini Version 1.0.04
Saturday, February 25, 2023 12:51:00 PM EST
- Official Pilot Release
